The ATS ELGI series Of reciprocating pumps are designed with advanced engineering techniques to fulfill the most exact requirements Of contemporary users. They bear a fine reputation for both quality and reliability as well as minimum maintenance and service.
Every component in a ATS ELGI reciprocating pump is subject to stringent quality assurance tests before final assembly. ATS ELGI reciprocating pumps find extensive use in service stations, garages, boiler feeders, steel mills, hydraulic presses, mining, breweries, spraying, food processing and numerous other applications.
Single and triple plunger type pumps are offered with single/twin guns with hose either on an integral tank or on a sturdy base frame.

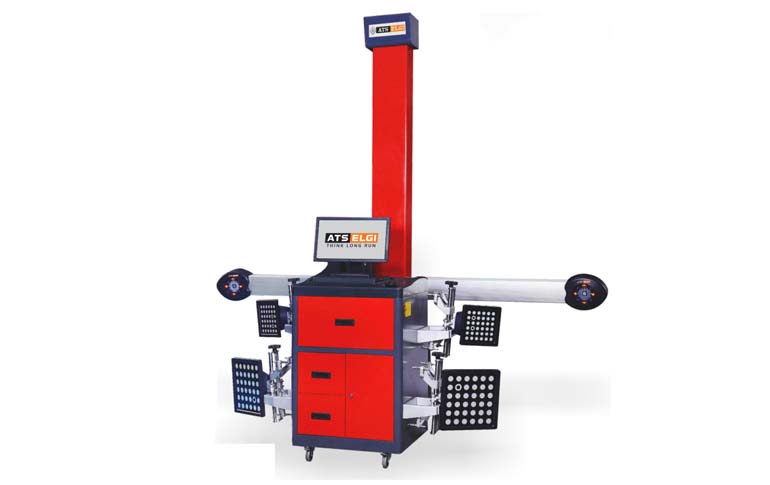

No need to 00k at the computer screen in the process Of vehicle pushing Indicative light around the camera wi guide the operation.
No radio beam, No batteries, No Electronic sensors, No electronic components. more durable, anti-corrosion materials Lighter, on y 15 mm thickness, more convenient,
View Brochure
Nitrogen is all around us. When used to replace oxygen and other gases in tire inflation, it enhances handling, improves fuel efficiency, extends tire life, protects the Earth and most importantly, keeps you safer on the road.
ATS ELGI's Nitrogen tyre inflator is the most widely used tyre inflator across India. It produces up to 95 - 99% pure Nitrogen at a rate of 3,500 LPH. Equipped to inflate two tyres at a time with a pressure range of O to 170 bar, this product is designed to suit the user's needs and improve tyre life,
| Automatic Nitrogen tyre inflating systems | Integrated vacuum system for removing air out oftyre before inflating with nitrogen |
| • Generate Nitrogen by Pressure Swing Adsorption (PSA) techn ique | In-built digital counter' |
| • Nitrogen/ Air-dual filling system | • On demand real time purity indicator' |
| • Integrated storage tank for nitrogen gas | • Inlet & outlet pressure indicator High grade filter separation unit |

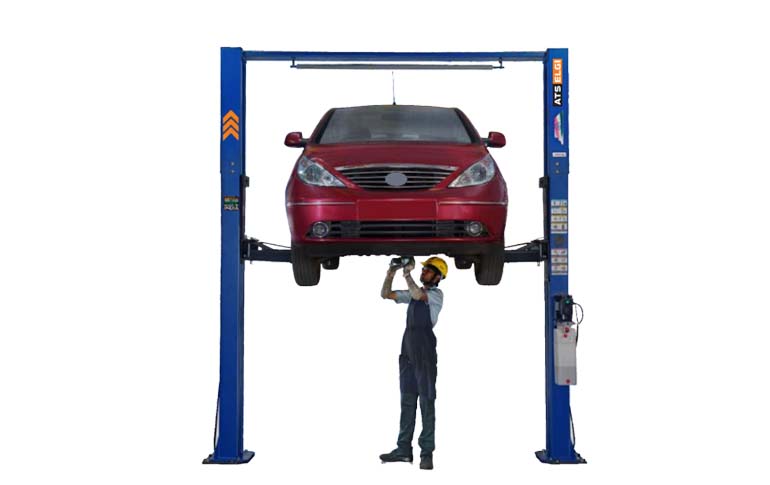

Base free design makes working beneath the vehicle easy Separate power pannel ensures more safty from electrical hazard
Dead man control system - 24V DC Arm restraints on each arm engages when the vehicle is lifted Manual release locking system for two sides rlivo full strokes cylinders, one in each column Rubber door- opening protection Telescopic Arm pads for quick and easy vehicle contacts Equipped with hose bust valve to prevent damage from hose/crimping end failure
Gantry free design enables to service high raised vehicle Arm restraints on each arm engages when the vehicle is lifted Manual release locking system for two sides T,vo full strokes cylinders, one in each column Rubber door- opening protection Telescopic Arm pads for quick and easy vehicle contacts
ATS-ELGI , renowned leader in lubrication pumps provides a complete range of performance proven grease pumps. Our pumps are renowned for their versatility and ease of use.
| Grease Pump: GP SO 001 | Air requirement (FAD) : 425 Ipm |
| Pressure Ratio: 50: 1 | Grease grade: NLGI |
| output at 8.5 300.400 g | Wire braided, Oil resistant, High pressure Hose |
| Max Working pressure: 10.5 Kg/crn2 | Delivery Hose Length: / 2.2 mt5 |
| Recomm.Working Pressure: to 8.5 Kg/cnf | ID Of Hose: 6 mm |
| Grease Blocked Pressure@ 8.5 Kgfkm2 Air pressure: 425 Kgffcm' | Drum Capacity: 25/50/200 Litres |
